A3 COMPACT FLEX
A3 COMPACT FLEX

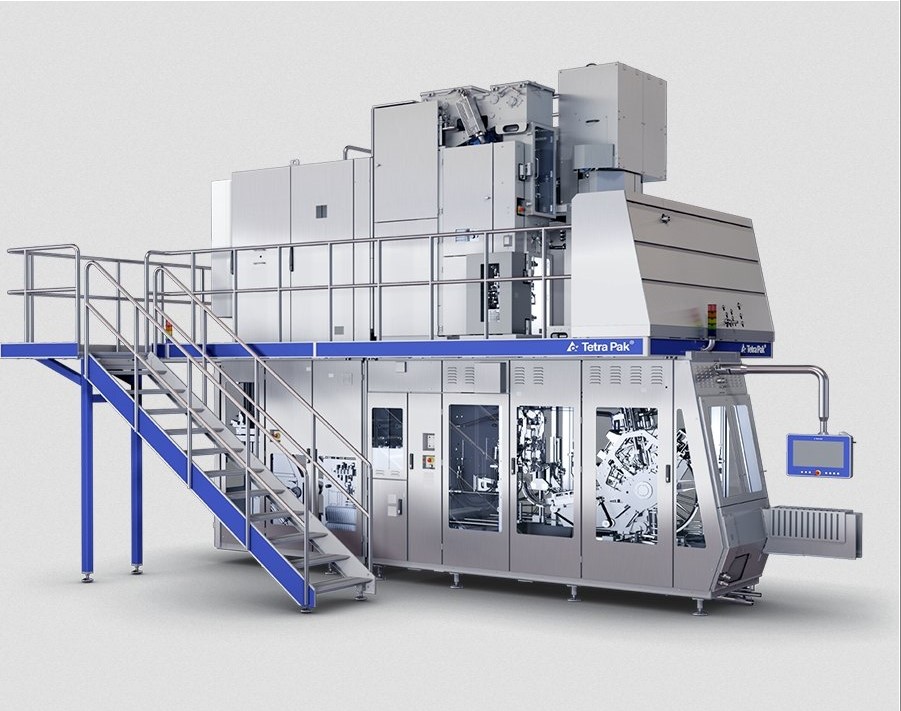

Tetra Pak® A3/Compact Flex Maximum flexibility - minimum space:
- Compact design, just 4,3 m high with a 20 m² footprint
- Quick Change available for a wide range of packages
- High food safety (unique aseptic process FDA filed)
| Brand | Terta Pak® |
|---|---|
| Filling System | Fully Automatic |
| Machine Type | Automatic |
| Footprint | 4.3 m high with a 20 m2 |
| Model Number | A3/Compact Flex |
| Product Type | Filling Machine |
| Suitable For | Multi layered packaging material |
Features:

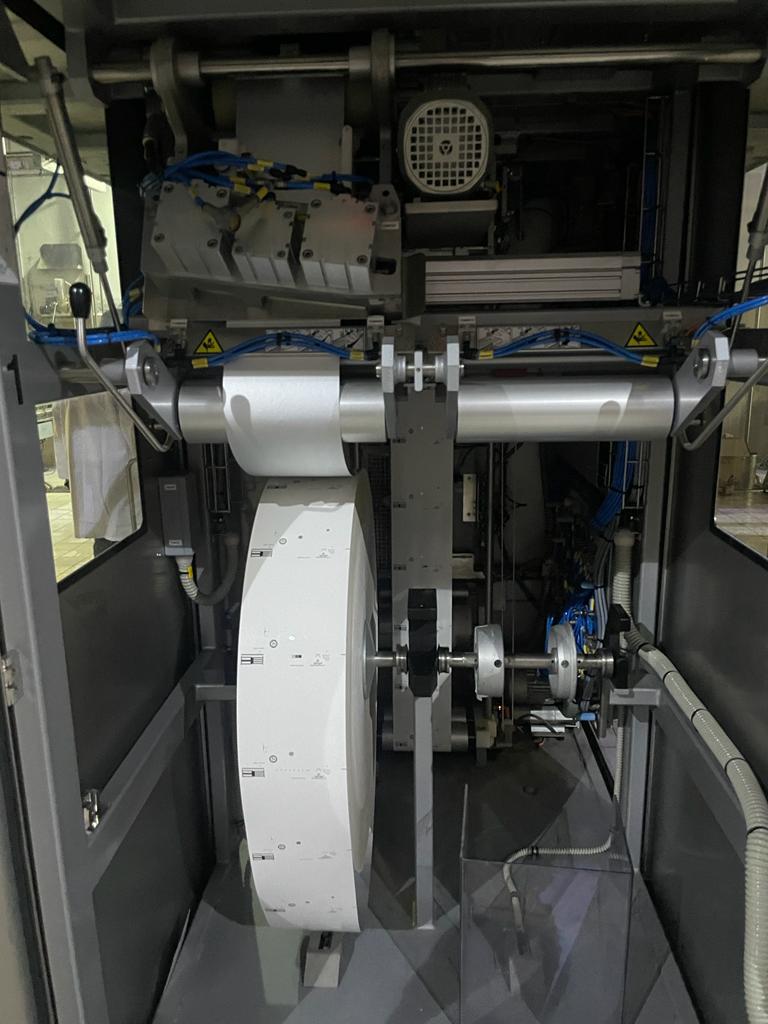

Automatic material supply Uninterrupted production :
- There's no need to halt production in order to refill with packaging material or strips since both are replaced automatically. Automation also ensures that splices between packaging material reels and strip applications are of consistent, repeatable quality.
Aseptic zone ensures aseptic conditions in an economical way:
- The flow of sterile air needed to maintain aseptic conditions is fully controlled in a closed loop, and designed to auto-correct if deviations occur. The smallness of the aseptic zone leads to savings in the consumption of both power and peroxide.
Deep peroxide bath For safer packaging material sterilisation:
- A peroxide bath, as opposed to a spray system, sterilises the packaging material inside and out. A special thermal carpet keeps the peroxide bath at the optimum sterilisation temperature.
Servo driven jaw system Adding flexibility and reducing waste:
- Using servo-motors, the jaw system profile is created in a software model rather than mechanically. This facilitates rapid conversion between different kinds of package production. Profiles are optimised to give better looking packages; printed package designs are synchronised to reduce waste.
Improved final folder design turning out better looking packages, faster:
- Packages are released from the machine in an upright position, which simplifies the production process and increases reliability. Servo-motors accelerate the final folding process to give a good package shape and high capacity. They also enable the production flexibility offered by Quick Change and Volume Conversion functions.
iLine automation platform More reliable production :
- As the filling machine is an integrated part of the line it communicates with all the other line equipment. Sterilisation, filling and sealing processes are continuously controlled, increasing the output of 'on-target' packages. This feature also enables selectable capacity for compatibility with existing processing or downstream equipment.
Operator interface Enabling operators to work swiftly and efficiently :
- Several factors contribute to the easy operation of this filling machine: the Tetra Pak® Operator Panel with its intuitive touch screen interface; large windows through which operators can observe production at first hand, and ground level access to essential working parts.
PLMS centre Operational control and performance analysis :
- The PLMS centre automatically collects production data from the automation platform. To this, the operator can add his own observations. Improvements in production efficiency can then be made on the basis of the two.
